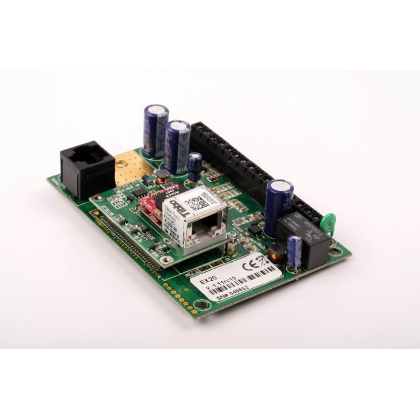

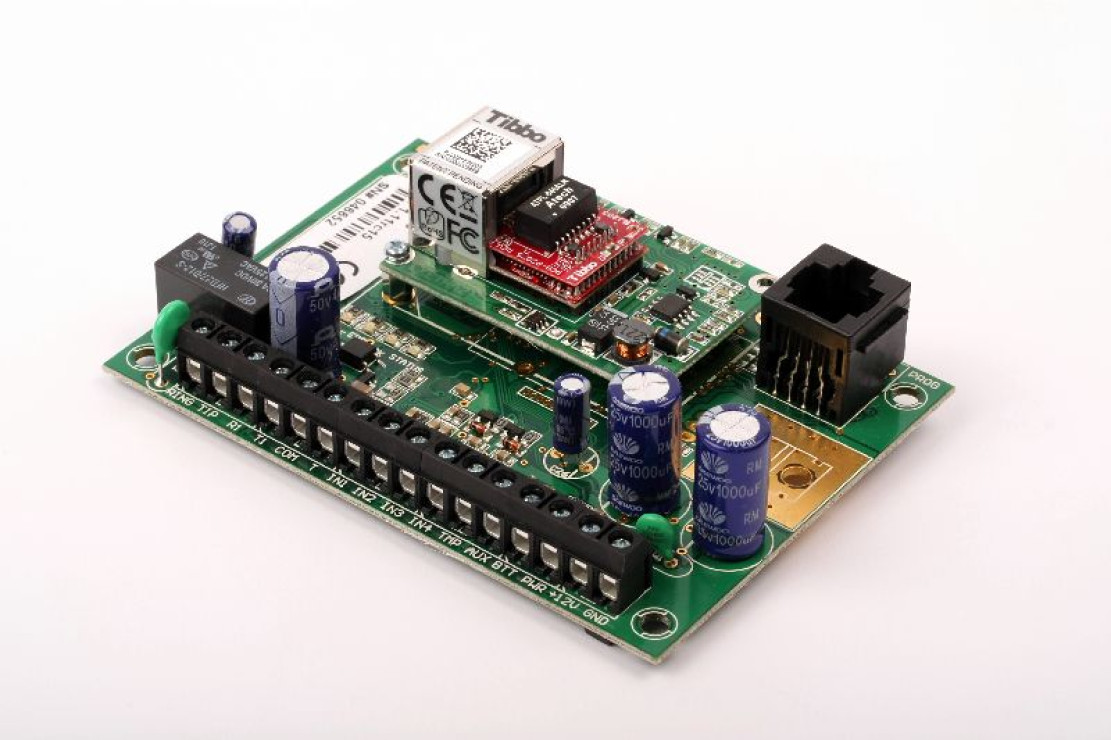

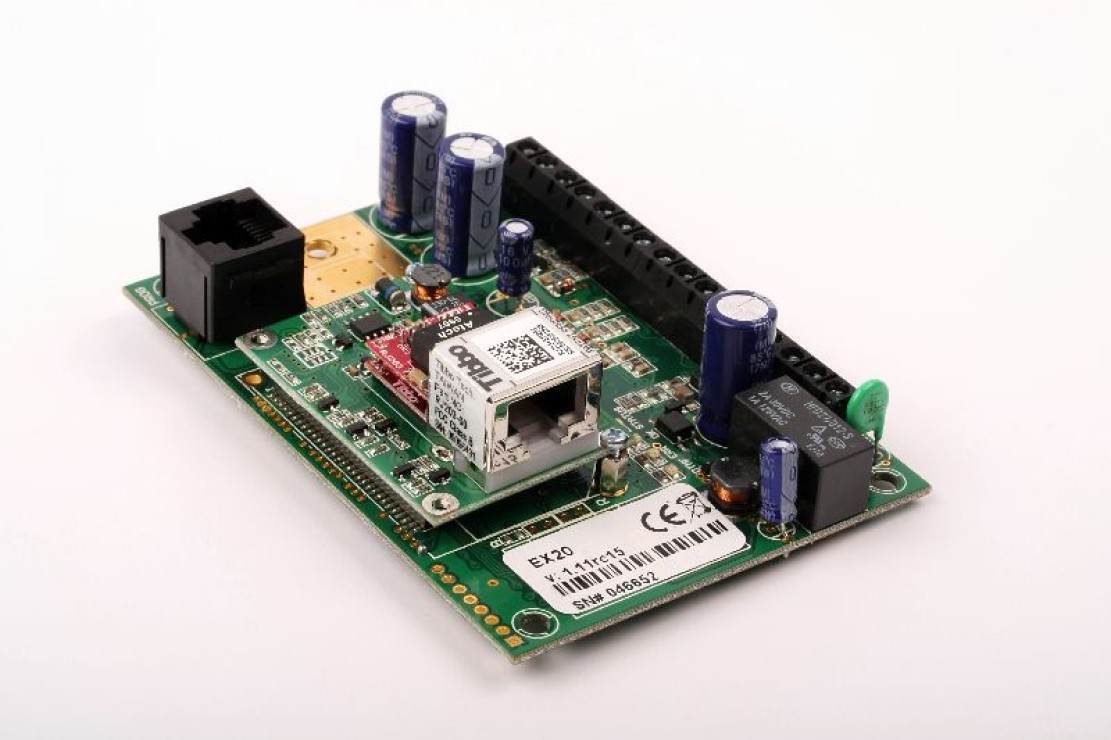

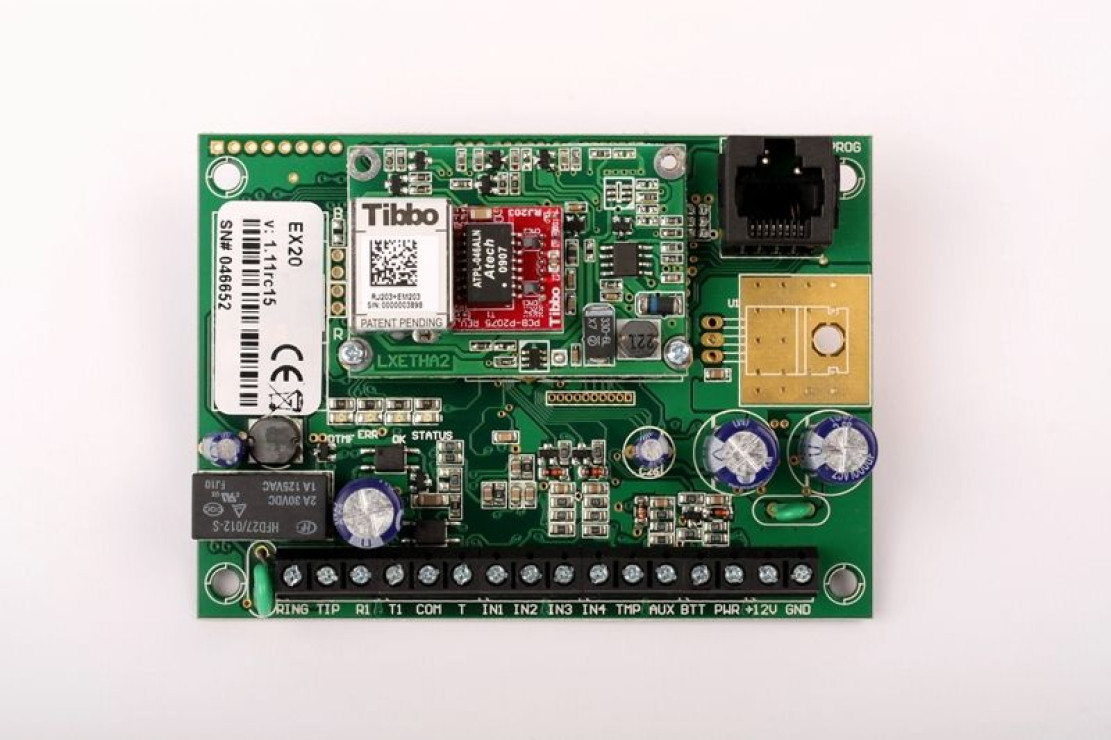

EBS IP Ethernet Transmitter EX20

Transmission channels

?

ETHERNET

(IEE 802.3; 10Mbps/100Mbps; DHCP/Static IP; LAN/WAN

Inputs

?

4 (NO/NC) + 1 SAB (NO/NC)

Outputs

?

2 (OC, max. load 100mA)

?

Output functions

(ways of control)

?

- absence of TCP/IP connection

- from server

- in reaction on inputs

?

Serial interface

RS232 / RS485 (lines: RxD, TxD, RTS, CTS)

transmission speed up to 115200bps

?

Quantity of system events stored in history

?

5000

?

GPRS/SMS transmission security

?

AES encryption

?

Status LEDs

(functions)

?

4 LEDs (connection status, device state, DTMF communication)

?

Configuration

?

?

Remote: ethernet

Local: PC through RS232 (required cable: LX-PROG)

?

?

Remote firmware update

?

YES

?

Power supply parameters

- PCB (without casing)

?

Voltage supply

?

?

?

13,8 VDC (acceptable: 12-14 VDC )

?

?

?

Power consumption

(average / max)

140mA@13,8VDC

?

Power supply parameters

- PCB in metal casing

Voltage supply

?

230VAC(acceptable: 190-250VAC )

?

Power consumption

(average / max)

4W/20W@230VAC

?

Charging module functions

(in version PCB in metal casing)

?

- fast battery charging mode

- protection against excessive discharge

- protection against reverse battery connection

- AC failure signalization

- low battery/no battery signalization

- protection against short circuit battery output

- polymer fuse

?

Backup battery connection

?

YES, lead-acid 12V

?

Battery charging current

max. 200mA or max. 1A

Threshold of signaling low AC voltage ?(at secondary / at primary)

13,5VAC/ 160VAC

?

Threshold of signaling low battery voltage

?

11VDC

?

Cut-off battery voltage level

?

?

9,5VDC

?

Dimensions

?

?

PCB: 102 x 73 x 35mm

?

PCB in metal casing: 255 x 255 x 90mm
