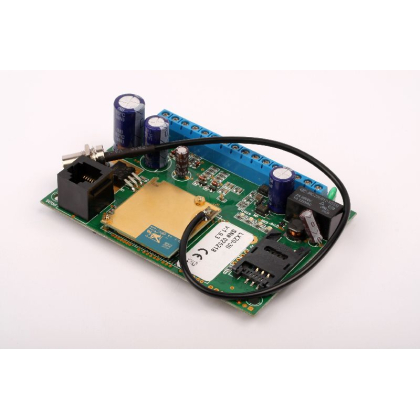

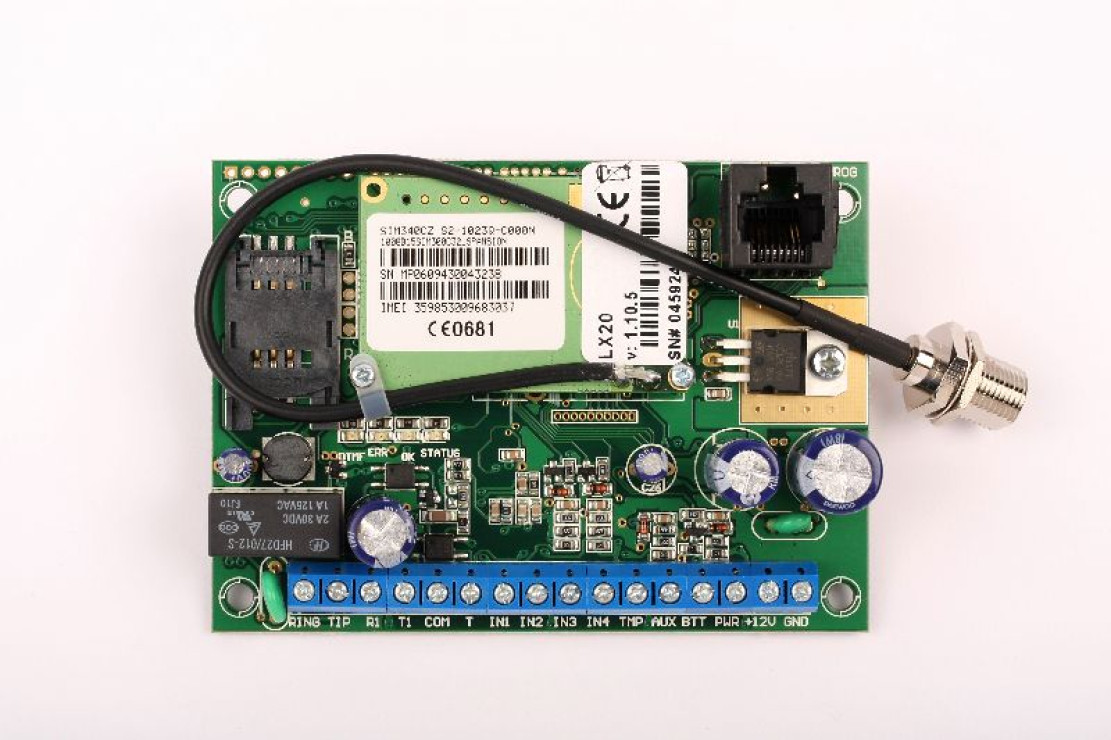

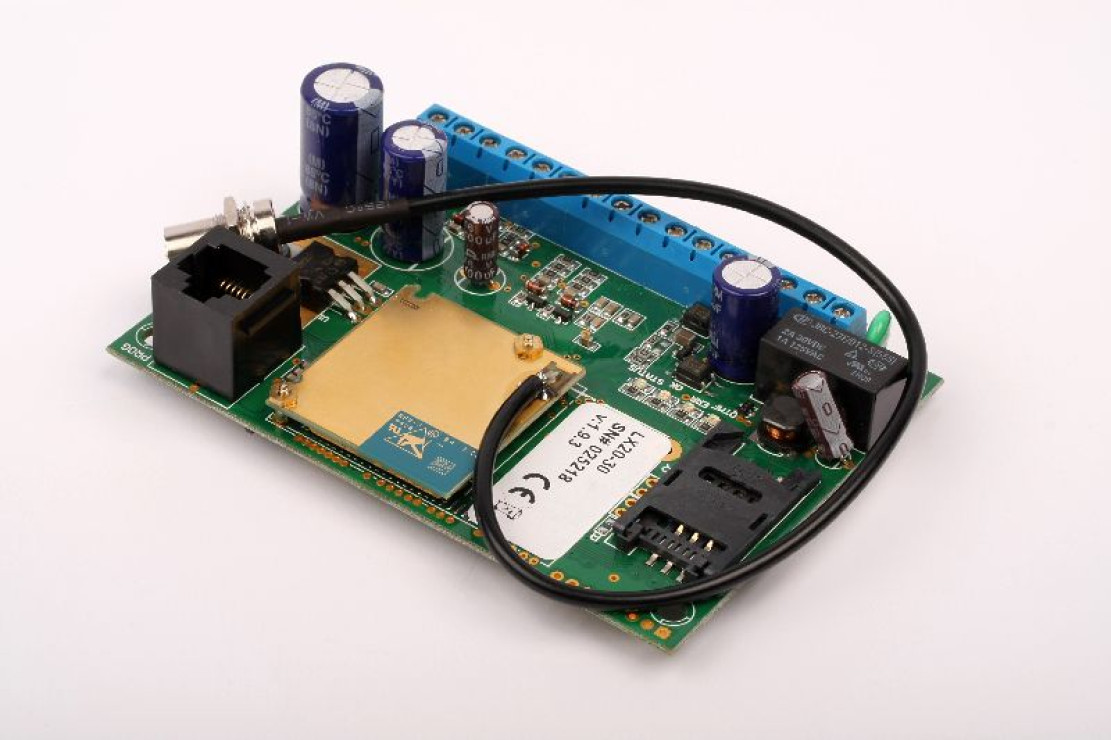

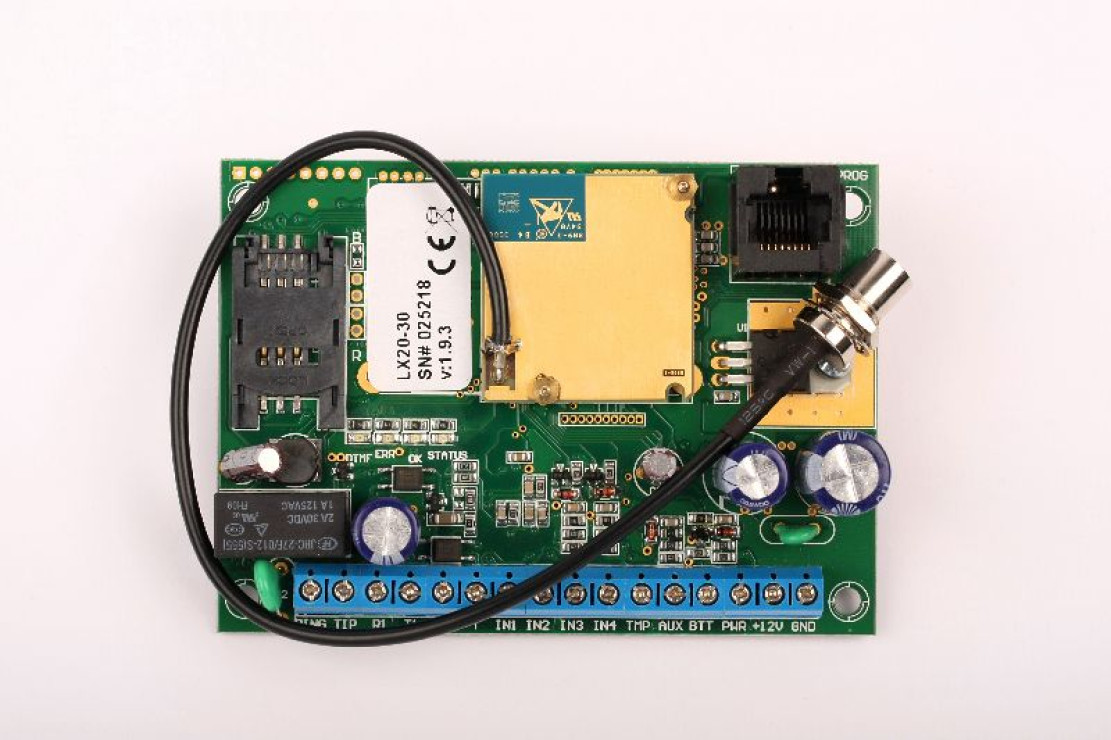

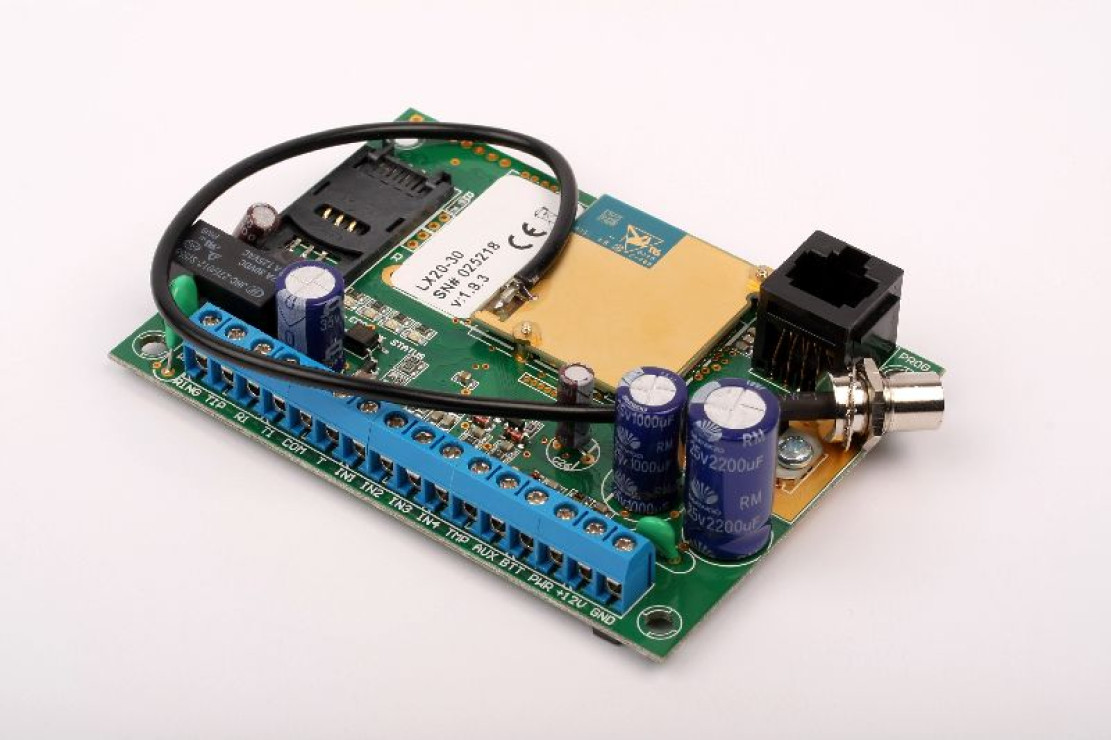

EBS Μονάδα GSM /GPRS Επικοινωνίας LX20G

Transmission channels

VoiceGSM,GPRS,SMS,PSTN

Inputs

2(NO/NC)+1SAB(NO/NC)

Phone input compatible with DTMF standard

?

TES

Outputs

3(OC,max.load100mA)

Output functions (waysofcontrol)

?

- unavailable GSM signal

- from server or through SMS

- incoming CLIP

- in reaction on inputs

Serial interface

?

RS232 / RS485 (lines: RxD, TxD, RTS, CTS) transmiss

ion speed up

to 115200bps

Quantity of system events stored in history

5000

Timestamp event

YES (only for events generated from LX)

GPRS/SMS transmission security

AESencryption

Status LEDs (functions)

?

4LEDs(GSMsignallevel,devicestate,DTMFcommun

ication)

Configuration

Remote: GPRS, SMS, CSD

?

Local: PC through RS232 (required cable: LX-PROG)

Remote firmware update

?

Yes

Supported modems

?

CinterionMC55i

Power supply

Parameters

- PCB

(withoutcasing)

Voltagesupply

?13,8VDC (acceptable:12-14VDC)

?

Powerconsumption

(average/max)

?

120mA/550mA@13,8VDC

?

Power supply

parameters

- PCB in plastic

casing

?

Voltagesupply

?230VAC (acceptable:190-250VAC)

?

Powerconsumption (average/max)

?

3W/20W@230VAC

?

Charging module functions

?

In version: PCB in plastic casing

- fast battery charging mode

- protection against excessive discharge

- protection against reverse battery connection

- AC failure signalization

- low battery/no battery signalization

- protection against short circuit battery output

- polymer fuse

Backup battery connection

?

YES, (in version: PCB in plastic casing), lead-acid

12V

?

Battery charging current

?

PCBinplastikcasing:max.200mAormax.1A

?

Threshold of signaling low AC voltage (at secondary / at primary)

?

13.5V AC/160VAC (inversion:PCBinplastikcasing)

Threshold of signaling low battery voltage

11VDC (in version:PCBinplasticcasing)

Cut-off battery voltage level

?

9,5VDC (inversion:PCBinplasticcasing)

?

?

Dimensions

PCB:163x73x35mm

?

PCBinplasticcasing:265x255x85mm
